Microphone Calibrator

Description

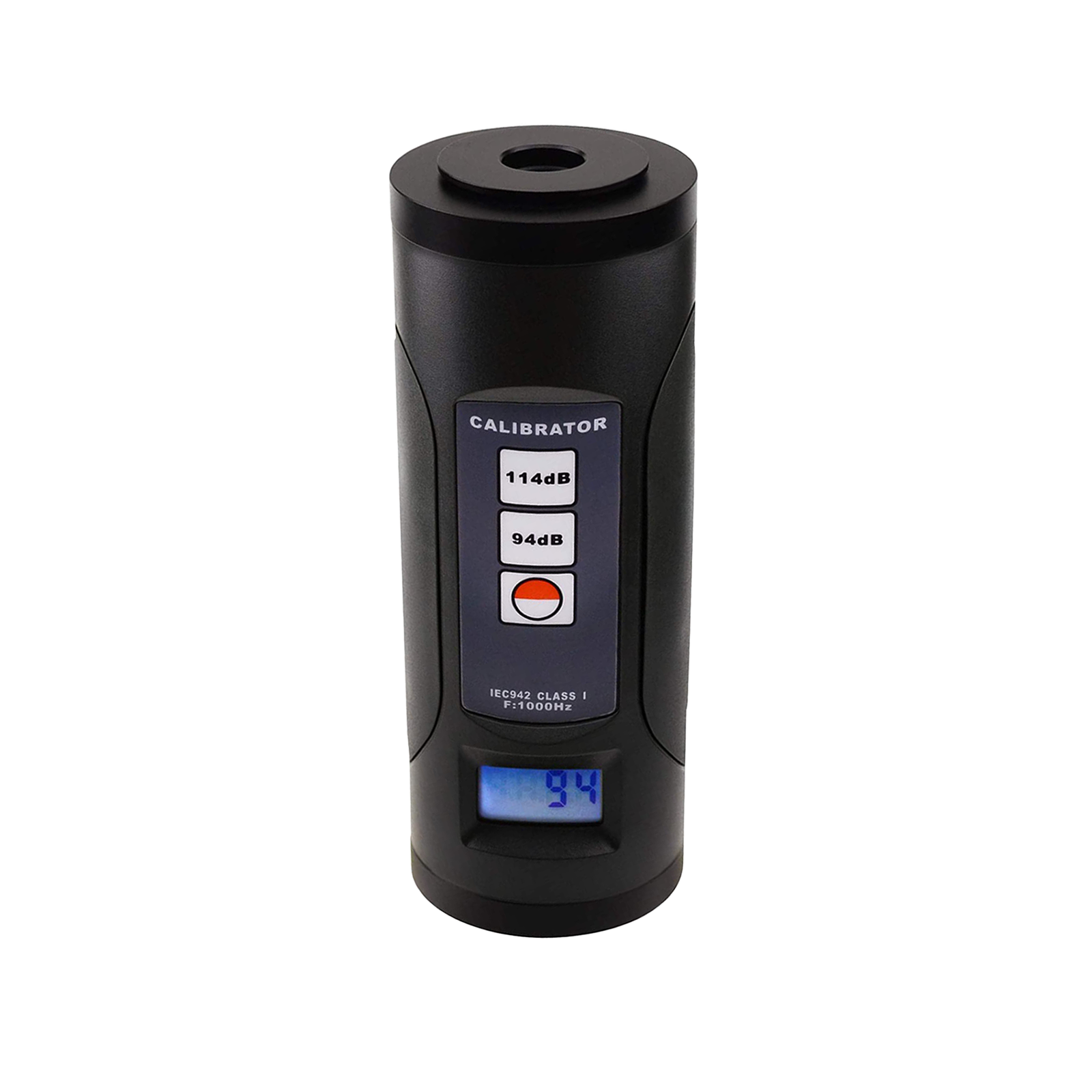

94 and 114dB sound level meter precision calibrator with output frequency of 1000 ±1Hz. These have an LCD display which shows the selected dB level.

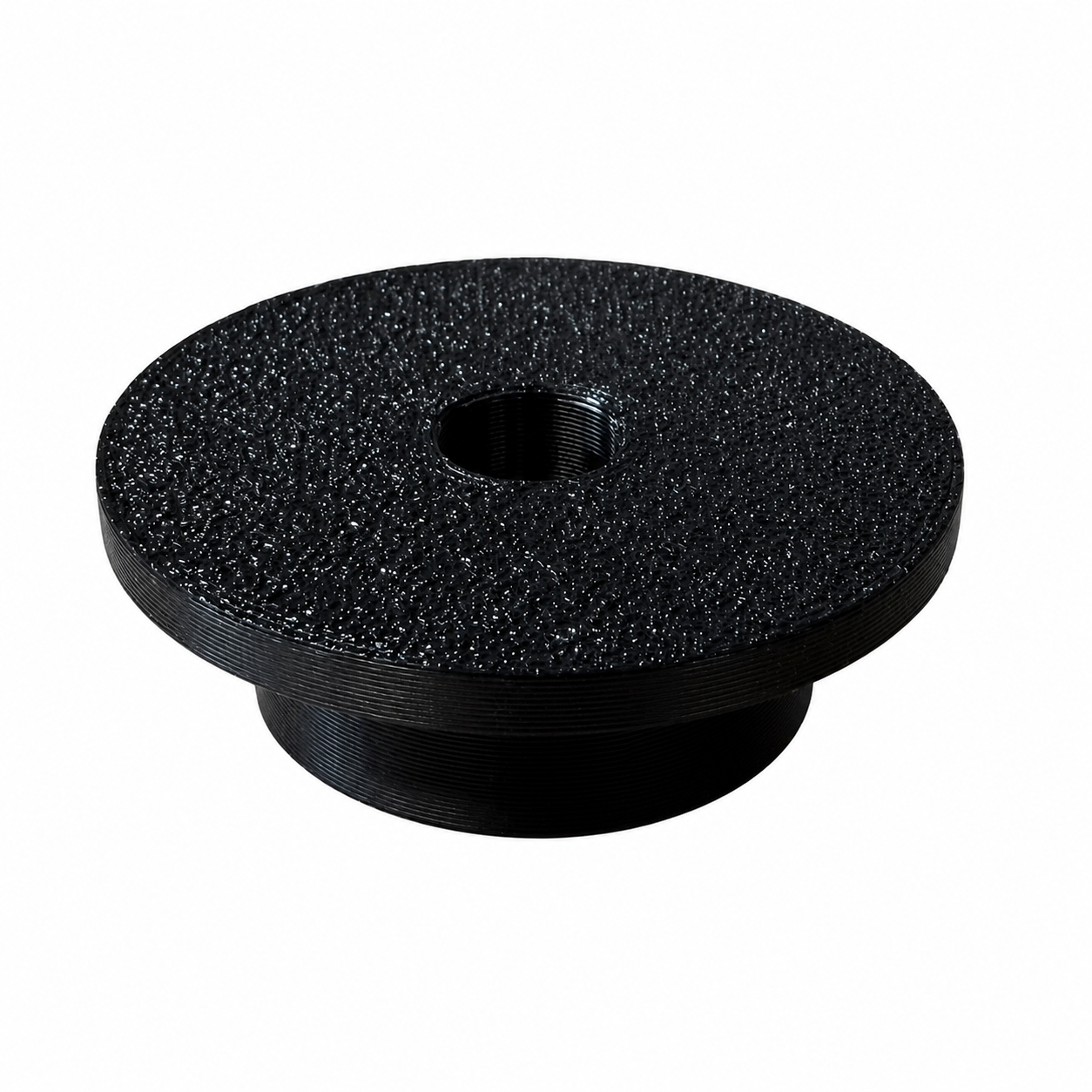

• Fits 7mm (1/4″), ½ inch, and 1 inch microphones (includes 1/4 inch and ½ inch adapters)
• Low distortion output
• Easy one-handed operation with low battery indicator
• Every calibrator is tested by Studio Six Digital and verified to meet +/- 0.1dB at 94 and 114dB
• Includes AAA batteries

Specifications

• Sound Pressure Level: 94dB & 114dB
• Accuracy: ±0.3dB (20°C, 760mm Hg)
• Frequency: 1000±1 Hz allows calibration with A,B,C or D weighting networks or linear
• Microphone Size: 1″ and 1/2″ microphones
• Temperature Coefficient: 0~0.01 dB/°C
• Standard: IEC60942 (IEC942) Class 1
• Altitude Effects: Approximately decrease 0.1dB per 2000 ft increase in altitude from sea level to 12,000 ft elevation, or comparable atmospheric pressure change (approximately every 50mm of Hg decrease)
• Operating Temperature: -10~50°C
• Storage Temperature: -40~65°C(batteries removed)
• Size: 137 x x51 x 51mm
• Weight: approx. 200g

Note: The calibrator has 2 multi-turn potentiometers that can be used to adjust the output level of the 94 and 114 dB levels individually. These have been set at our facility should only be changed by a qualified technician or laboratory.
