CLF Viewer -- View industry-standard AV installation loudspeaker information for hundreds of units from over 25 manufacturers. See plots including sensitivity, impedance, axial response, polar response, and a 3D color balloon plot that you can rotate to visualize the directional response in the room by frequency.

Sort list by manufacturer, active/passive, half-sphere/full-sphere, or weight. Save favorites.

Included free in the AudioTools app.


Screenshot 2014.01.31 11.18.57

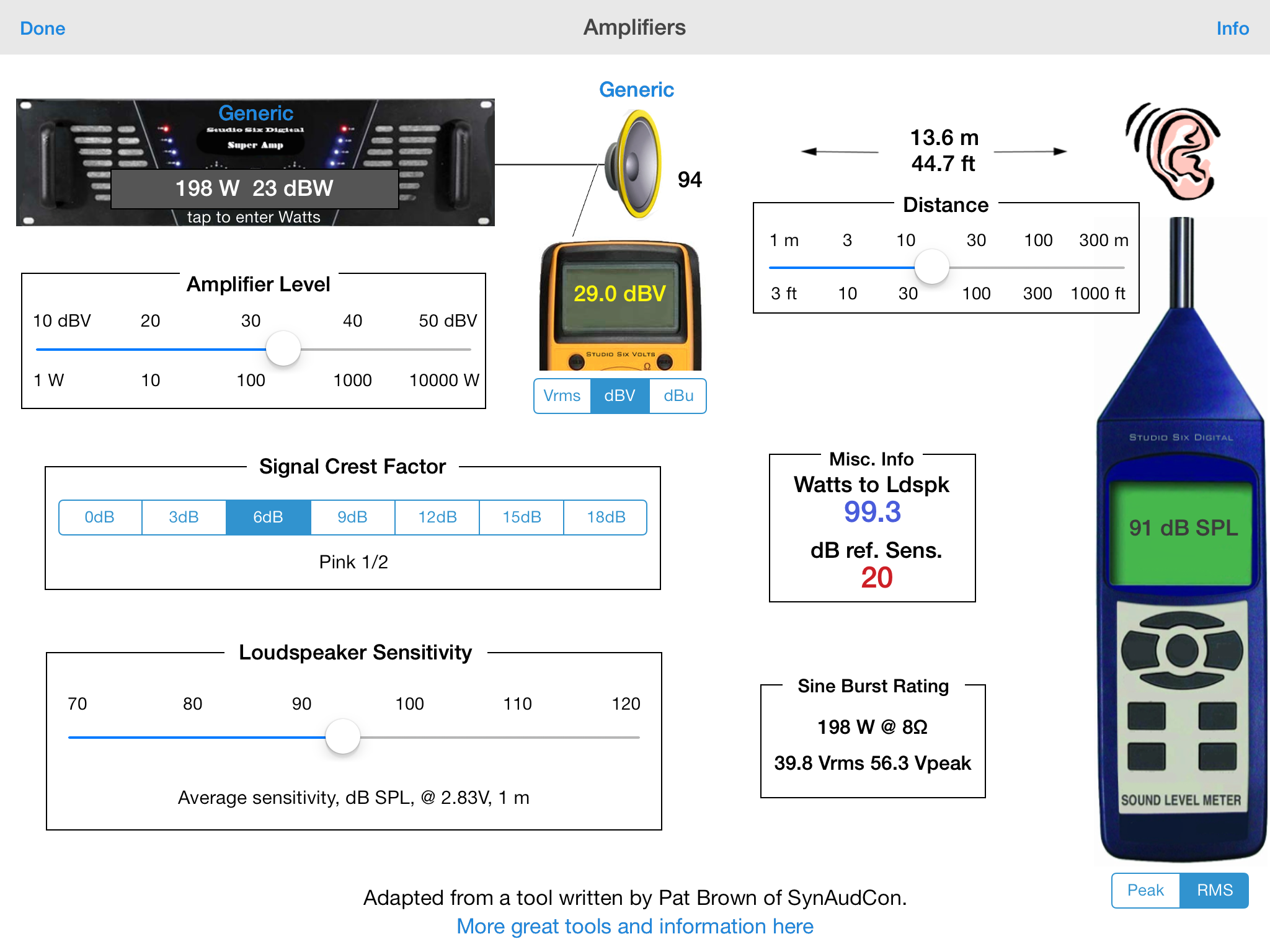

Amplifiers — Set the amp output level, select a signal crest factor, loudspeaker sensitivity, and distance using sliders and selectors.

Read out the resulting SPL level, see the amplifier output voltage, and also the Watts to the loudspeaker, dB Reference Sensitivity, and the Sine Burst Rating.

Uses generic devices now, soon it will support selecting specific amplifiers and loudspeakers from manufacturers participating in our sponsorship program.

Adapted from a tool written by Pat Brown at SynAudCon. More great tools and information available from SynAudCon here!

Included free in the AudioTools app.


Screenshot 2014.01.31 11.19.05

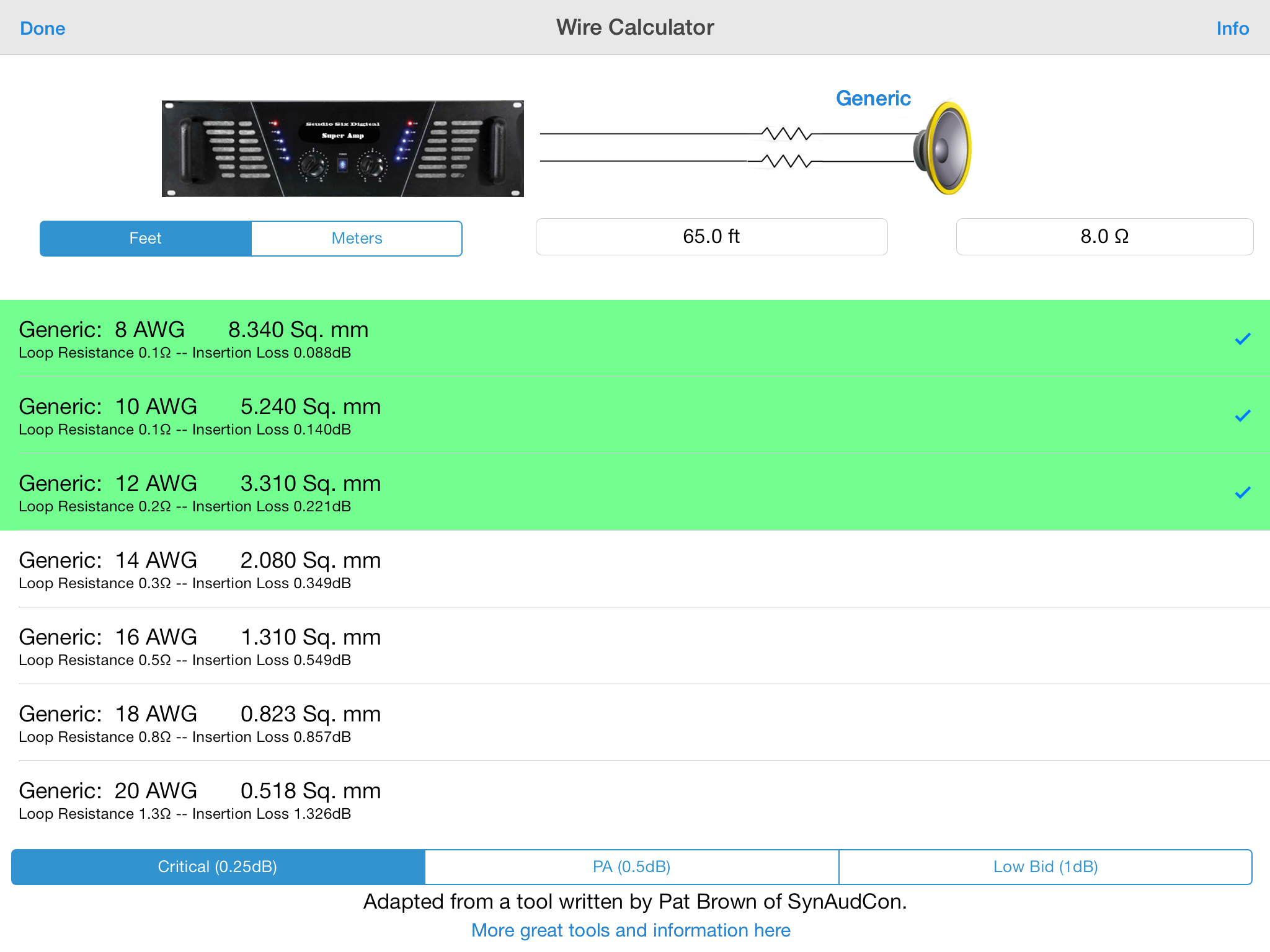

Wire Gage Tool — Enter the length of the wire, and the load, and select the type of measure, Critical, PA, or Low Bid, and see the wire gages that will work for the install.

Uses generic wire and shows results in AWG and Sq. mm. Soon it will support selecting specific wire from manufacturers participating in our sponsorship program.

Adapted from a tool by Pat Brown at SynAudCon. More great tools and information available from SynAudCon here!

Included free in the AudioTools app.


Screenshot 2014.01.31 11.19.16

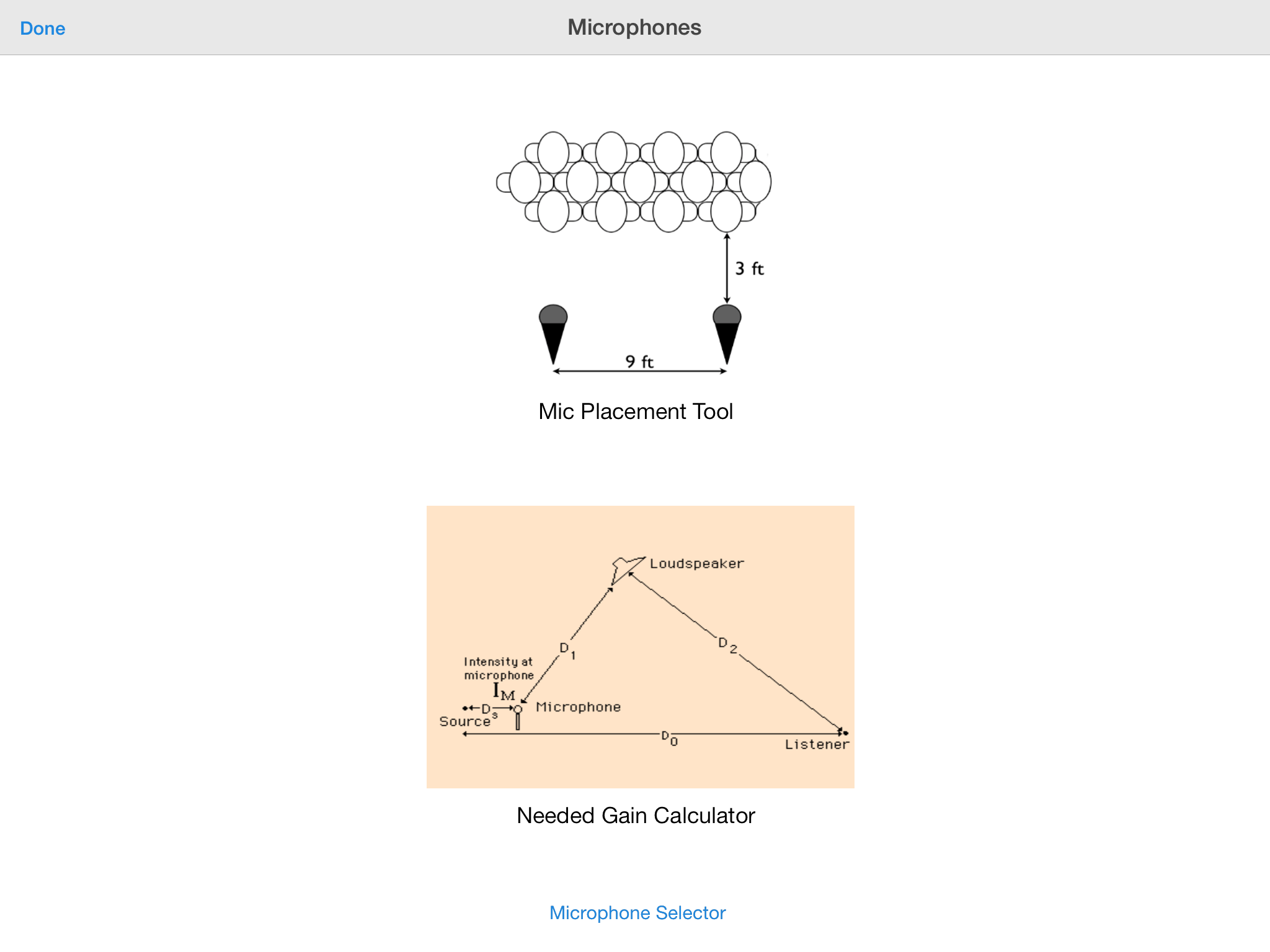

Microphone Tool — Includes a Mic Placement Tool that calculates minimum spacing requirements for microphones.

Also includes a Needed Gain Calculator that computes NAG (Needed Acoustic Gain) and PAG (Potential Acoustic Gain) from distances between microphones, presenter, and listeners , equivalent acoustic distance, and the number of microphones installed.


Included free in the AudioTools app.


Room Treatment — Test RT60 times, and apply treatments and observe the effects on the reverb times in the room.

Select from a variety of actual room treatment materials from participating manufacturers, or from our list of generic materials.
